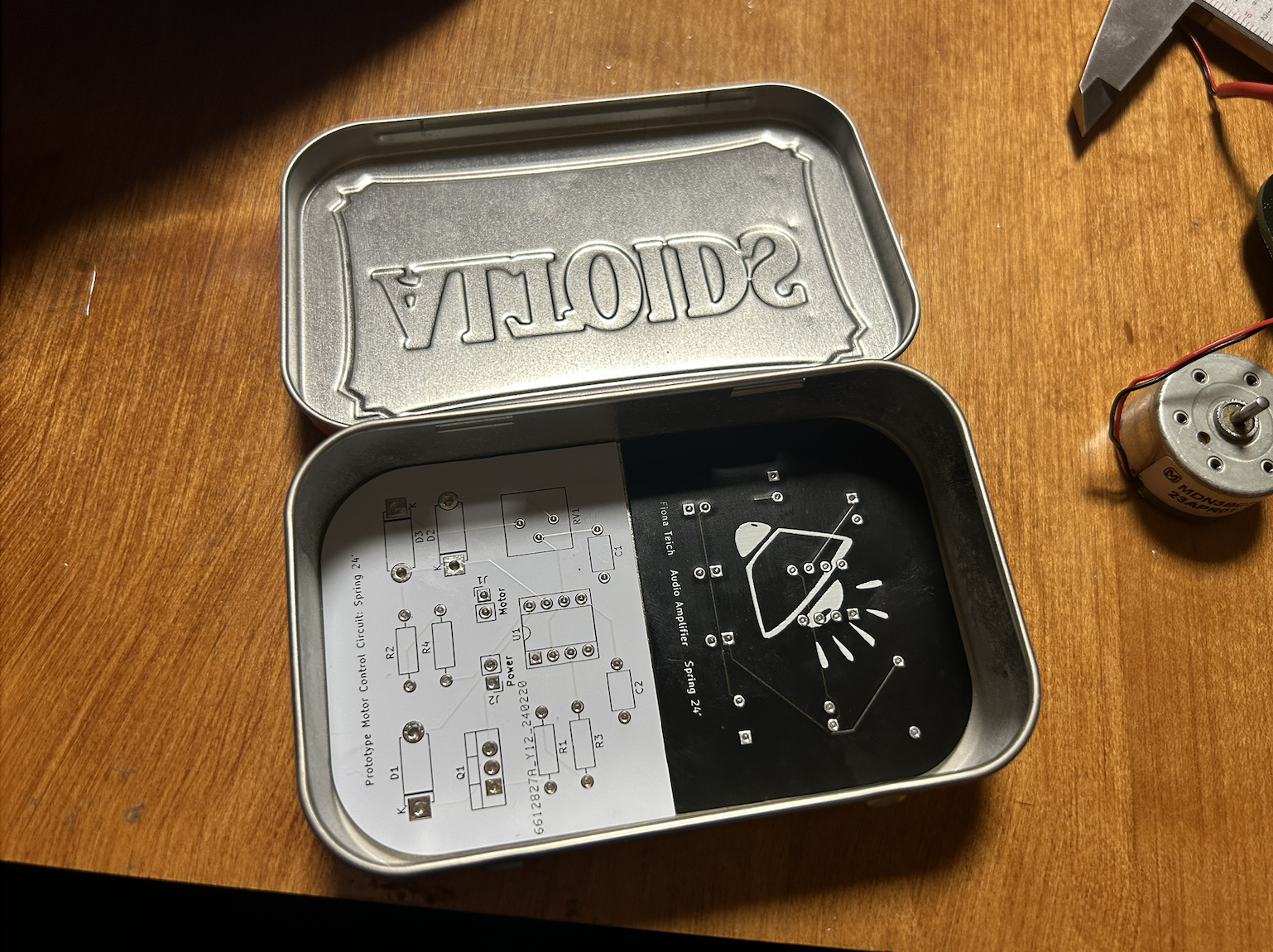

So my PCBs for my Cassette player project arrived and they fit!
This project aims to create a cassette player in an altoids tin.
There are two main components to this project, the electronics and the mechanics.
I've been working on the electronics and I now have a very simple working set up that I plan to continue to add and change and make better and more capable.
The current set up consists of two parts: the audio and the motor control using a LM386 and 555 timer chip.
I will go into the details of how the circuits work and the design process on Kicad in another entry.

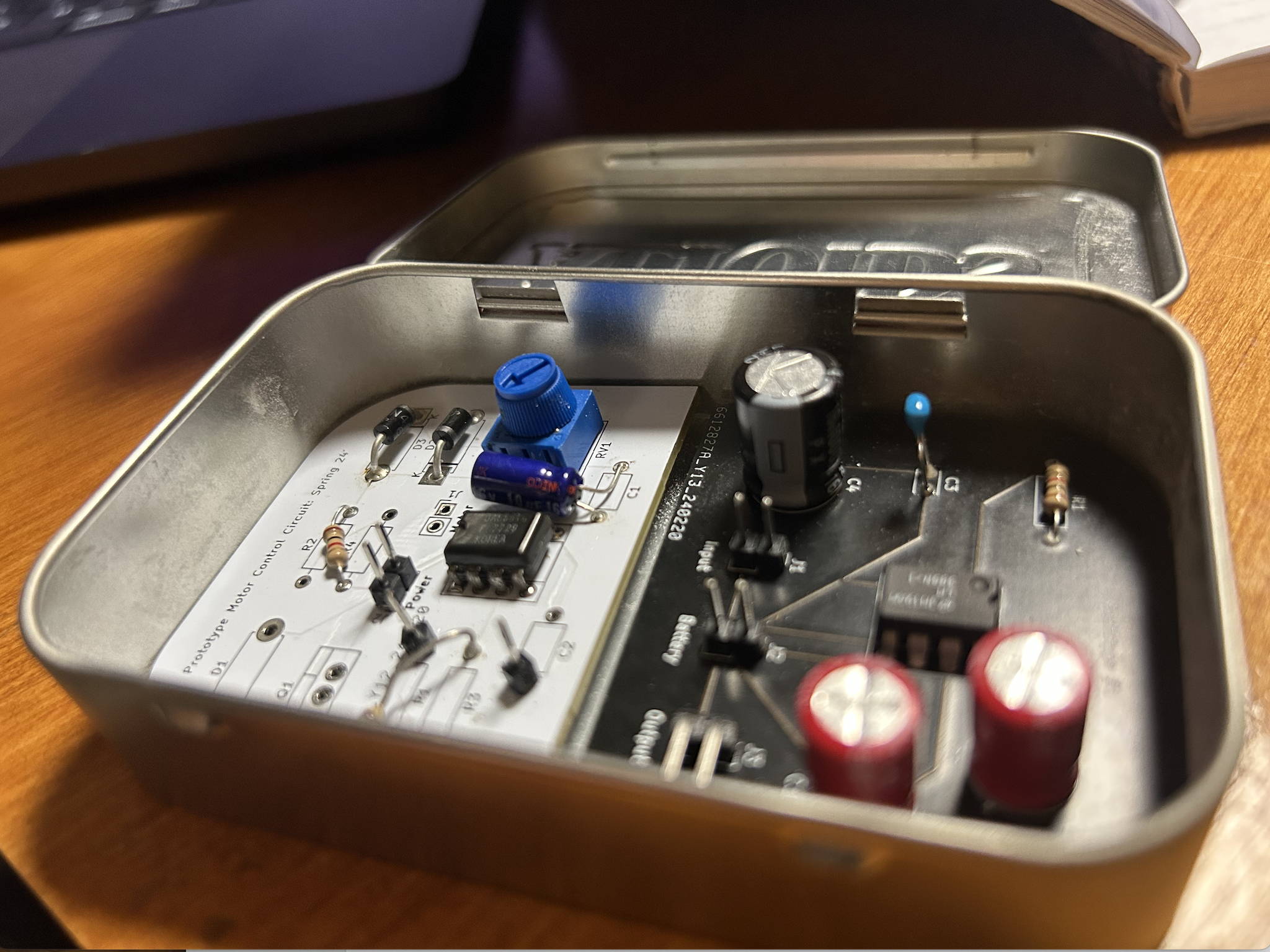

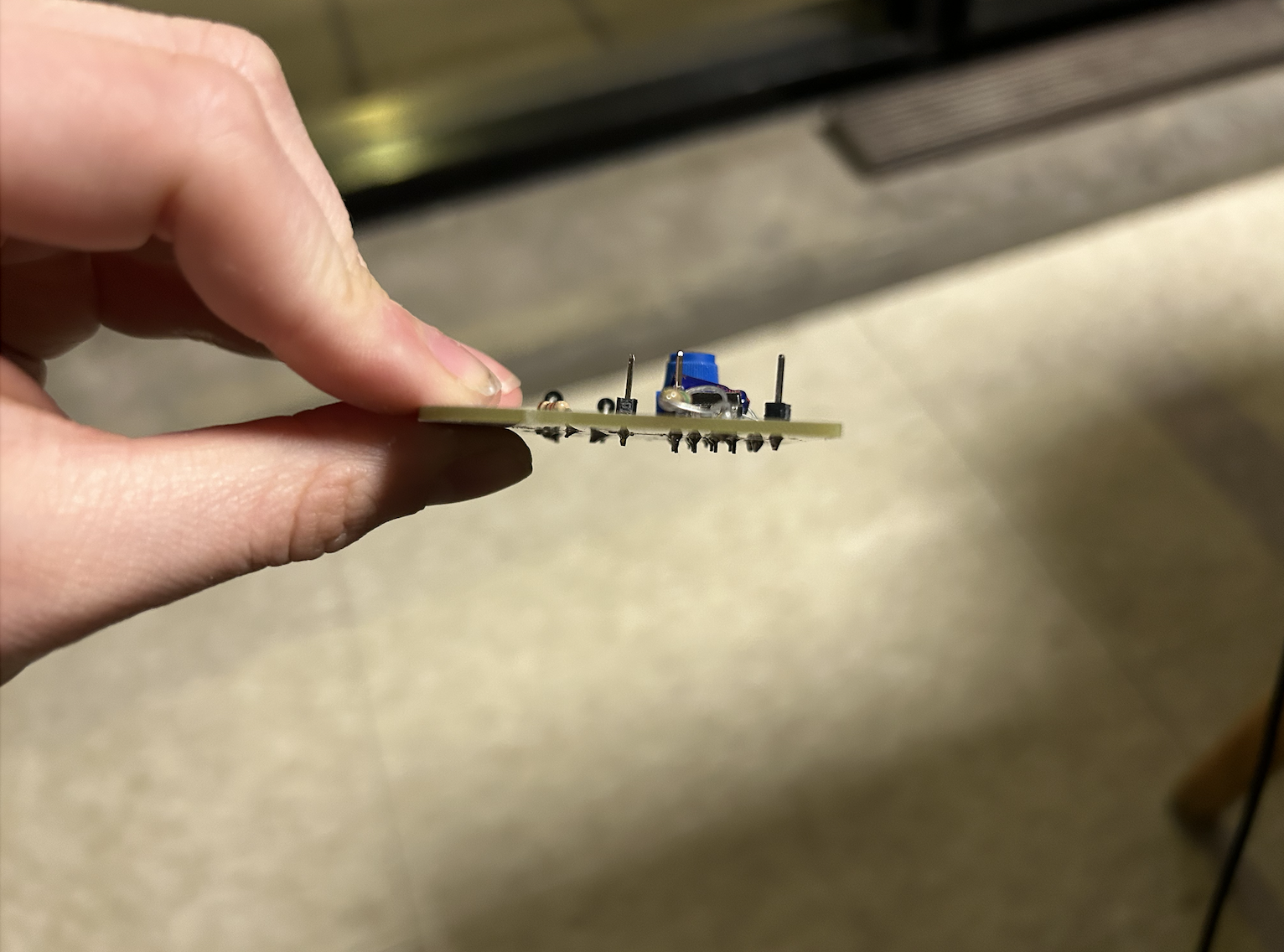

So now that I soldered up the boards I have ran into a slight problem. The through hole solder components make it lay uneven and slide around.

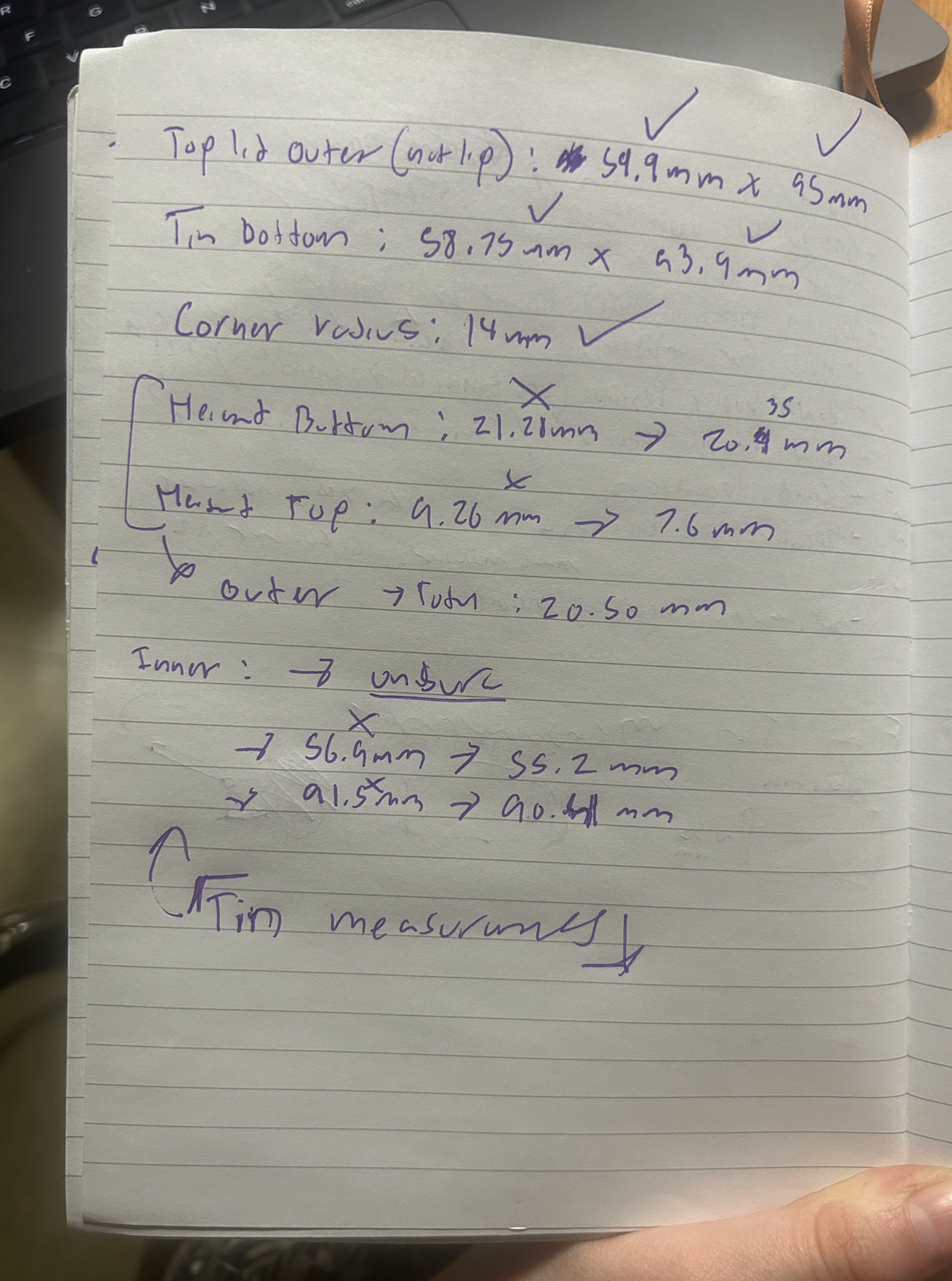

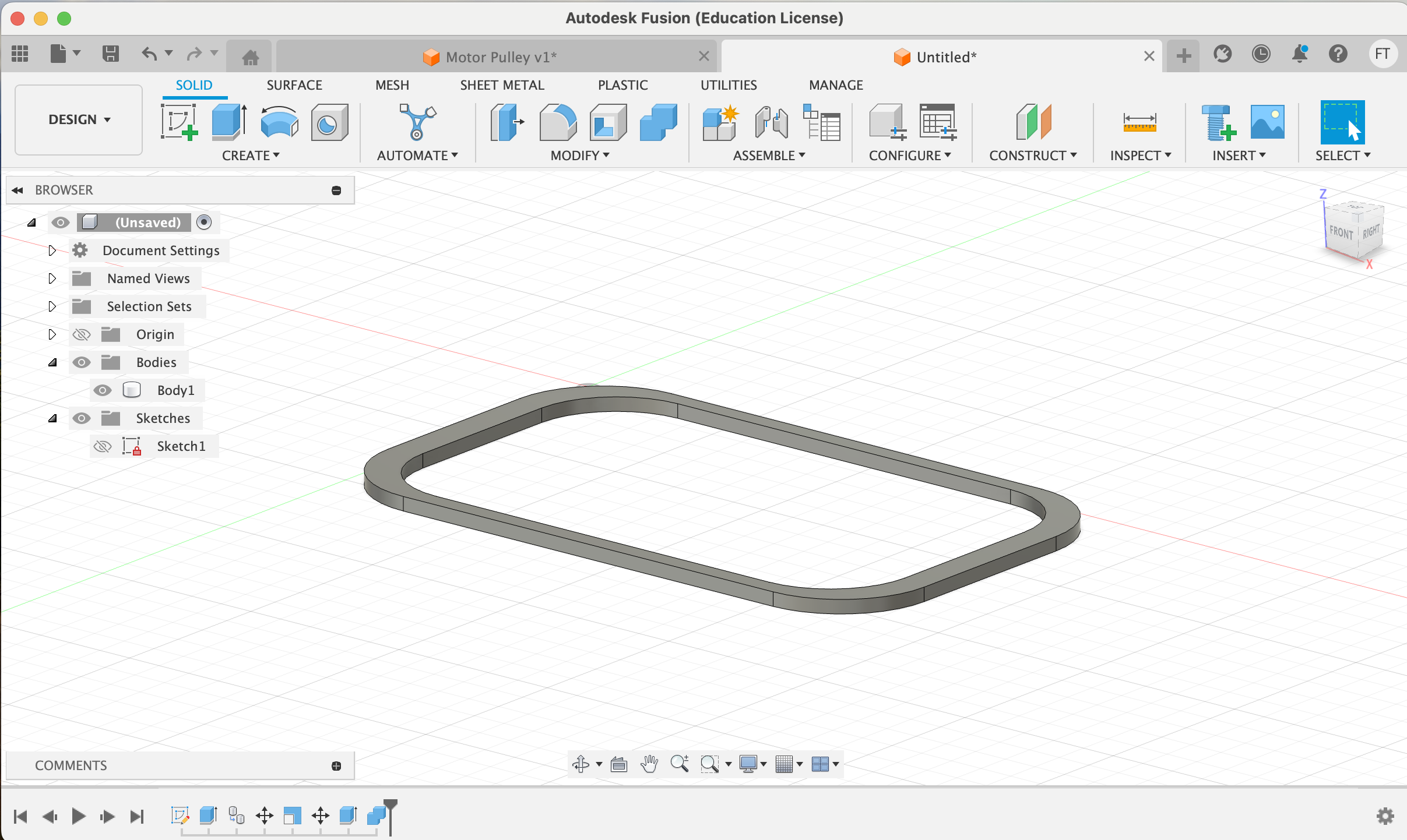

In order to fix this I measured the inside with some calipers and designed a simple 2mm circle fitting on the inside to hold the pcb boards steady and level.

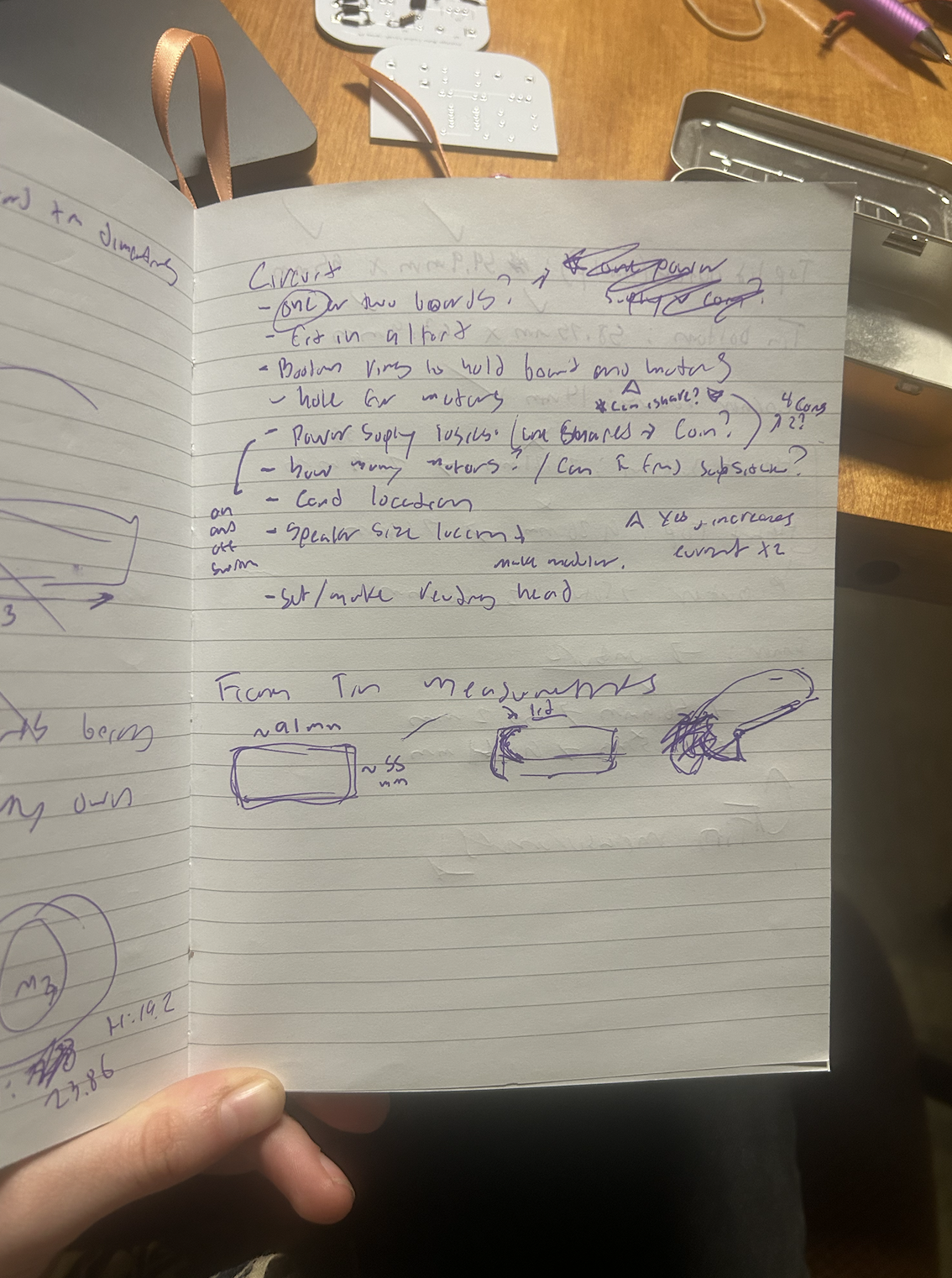

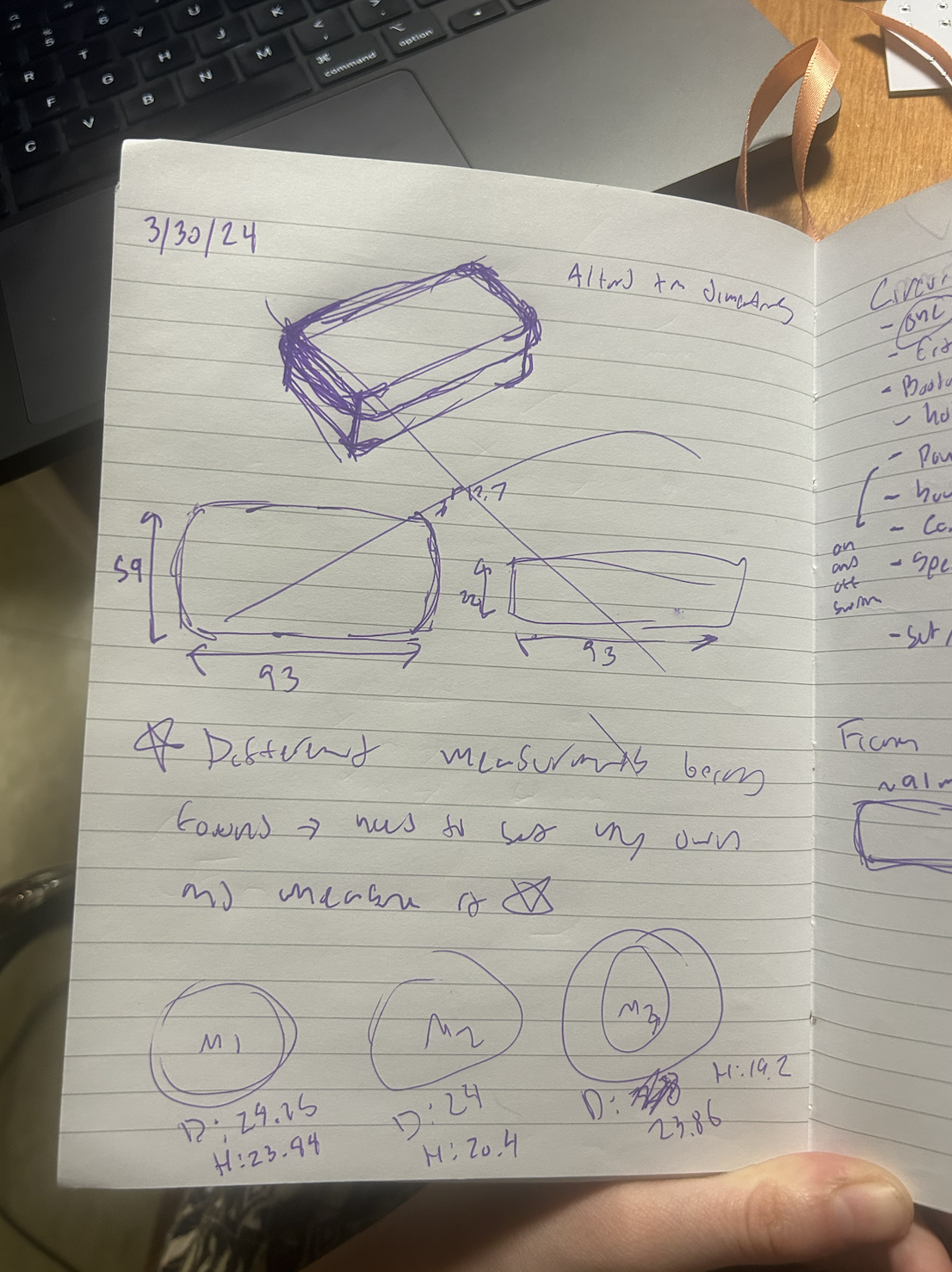

Notes Taken Today:
